Ching, TC;
Qiu, K;
Li, D;
Ren, Z;
Lai, SP;
Berry, D;
Pattle, K;
... Li, G; + view all
(2022)
The JCMT BISTRO-2 Survey: Magnetic Fields of the Massive DR21 Filament.
Astrophysical Journal
, 941
(2)
, Article 122. 10.3847/1538-4357/ac9dfb.
Preview |
Text

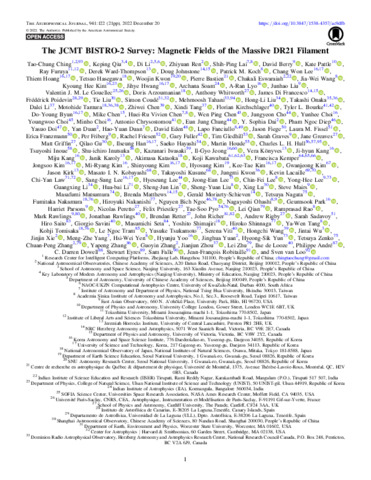

Ching_2022_ApJ_941_122.pdf - Published Version Download (3MB) | Preview |
Abstract
We present 850 μm dust polarization observations of the massive DR21 filament from the B-fields In STar-forming Region Observations (BISTRO) survey, using the POL-2 polarimeter and the SCUBA-2 camera on the James Clerk Maxwell Telescope. We detect ordered magnetic fields perpendicular to the parsec-scale ridge of the DR21 main filament. In the subfilaments, the magnetic fields are mainly parallel to the filamentary structures and smoothly connect to the magnetic fields of the main filament. We compare the POL-2 and Planck dust polarization observations to study the magnetic field structures of the DR21 filament on 0.1-10 pc scales. The magnetic fields revealed in the Planck data are well-aligned with those of the POL-2 data, indicating a smooth variation of magnetic fields from large to small scales. The plane-of-sky magnetic field strengths derived from angular dispersion functions of dust polarization are 0.6-1.0 mG in the DR21 filament and ∼0.1 mG in the surrounding ambient gas. The mass-to-flux ratios are found to be magnetically supercritical in the filament and slightly subcritical to nearly critical in the ambient gas. The alignment between column density structures and magnetic fields changes from random alignment in the low-density ambient gas probed by Planck to mostly perpendicular in the high-density main filament probed by James Clerk Maxwell Telescope. The magnetic field structures of the DR21 filament are in agreement with MHD simulations of a strongly magnetized medium, suggesting that magnetic fields play an important role in shaping the DR21 main filament and subfilaments.
| Type: | Article |
|---|---|
| Title: | The JCMT BISTRO-2 Survey: Magnetic Fields of the Massive DR21 Filament |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.3847/1538-4357/ac9dfb |
| Publisher version: | https://doi.org/10.3847/1538-4357/ac9dfb |
| Language: | English |
| Additional information: | © 2022. The Author(s). Published by the American Astronomical Society. Original content from this work may be used under the terms of the Creative Commons Attribution 4.0 licence. Any further distribution of this work must maintain attribution to the author(s) and the title of the work, journal citation and DOI. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10162930 |
