Batey, Darren;
Rau, Christoph;
Cipiccia, Silvia;
(2022)
High-speed X-ray ptychographic tomography.
Scientific Reports
, 12
(1)
, Article 7846. 10.1038/s41598-022-11292-8.
Preview |
Text

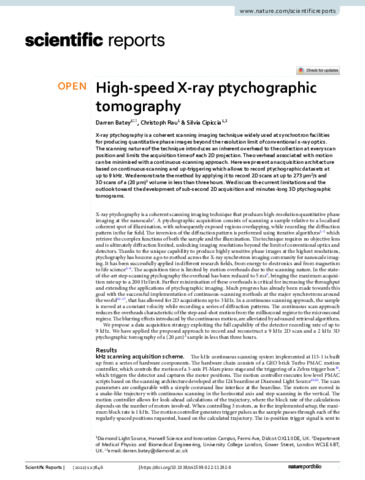

Cipiccia_s41598-022-11292-8.pdf - Published Version Download (2MB) | Preview |
Abstract
X-ray ptychography is a coherent scanning imaging technique widely used at synchrotron facilities for producing quantitative phase images beyond the resolution limit of conventional x-ray optics. The scanning nature of the technique introduces an inherent overhead to the collection at every scan position and limits the acquisition time of each 2D projection. The overhead associated with motion can be minimised with a continuous-scanning approach. Here we present an acquisition architecture based on continuous-scanning and up-triggering which allows to record ptychographic datasets at up to 9 kHz. We demonstrate the method by applying it to record 2D scans at up to 273 µm2/s and 3D scans of a (20 µm)3 volume in less than three hours. We discuss the current limitations and the outlook toward the development of sub-second 2D acquisition and minutes-long 3D ptychographic tomograms.
| Type: | Article |
|---|---|
| Title: | High-speed X-ray ptychographic tomography |
| Location: | England |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1038/s41598-022-11292-8 |
| Publisher version: | https://doi.org/10.1038/s41598-022-11292-8 |
| Language: | English |
| Additional information: | © 2022 Springer Nature Limited. his article is licensed under a Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/). |
| Keywords: | Motion, Optics and Photonics, Synchrotrons, Tomography, X-Ray, X-Rays |
| UCL classification: | UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng UCL > Provost and Vice Provost Offices > UCL BEAMS UCL |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10149231 |
