Walch, A;
Mohajeri, N;
Gudmundsson, A;
Scartezzini, JL;
(2021)
Quantifying the technical geothermal potential from shallow borehole heat exchangers at regional scale.
Renewable Energy
, 165
pp. 369-380.
10.1016/j.renene.2020.11.019.
Preview |
Text

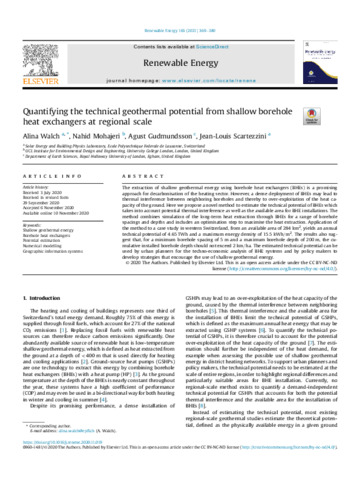

1-s2.0-S0960148120317602-main(1).pdf - Published Version Download (4MB) | Preview |
Abstract
The extraction of shallow geothermal energy using borehole heat exchangers (BHEs) is a promising approach for decarbonisation of the heating sector. However, a dense deployment of BHEs may lead to thermal interference between neighboring boreholes and thereby to over-exploitation of the heat capacity of the ground. Here we propose a novel method to estimate the technical potential of BHEs which takes into account potential thermal interference as well as the available area for BHE installations. The method combines simulation of the long-term heat extraction through BHEs for a range of borehole spacings and depths and includes an optimisation step to maximise the heat extraction. Application of the method to a case study in western Switzerland, from an available area of 284km2, yields an annual technical potential of 4.65TWh and a maximum energy density of 15.5kWh/m2. The results also suggest that, for a minimum borehole spacing of 5m and a maximum borehole depth of 200m, the cumulative installed borehole depth should not exceed 2km/ha. The estimated technical potential can be used by urban planners for the techno-economic analysis of BHE systems and by policy makers to develop strategies that encourage the use of shallow geothermal energy.
| Type: | Article |
|---|---|
| Title: | Quantifying the technical geothermal potential from shallow borehole heat exchangers at regional scale |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.renene.2020.11.019 |
| Publisher version: | https://doi.org/10.1016/j.renene.2020.11.019 |
| Language: | English |
| Additional information: | © 2020 The Authors. Published by Elsevier Ltd. This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/). |
| Keywords: | Shallow geothermal energy, Borehole heat exchangers, Potential estimation, Numerical modelling, Geographic information systems |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of the Built Environment UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of the Built Environment > Bartlett School Env, Energy and Resources |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10139736 |
