Guo, J;
Marin-Beloqui, JM;
Clarke, TM;
(2021)
Bimodal polarons as a function of morphology in high efficiency polymer/acceptor blends for organic photovoltaics.
Journal of Physics: Materials
, 4
(4)
, Article 044009. 10.1088/2515-7639/ac0fbc.
Preview |
Text
Guo_2021_J._Phys._Mater._4_044009.pdf - Published Version Download (2MB) | Preview |
Abstract

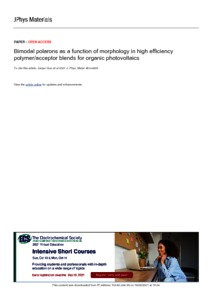

The polymer PffBT4T-C9C13 (poly[(5,6-difluoro-2,1,3-benzothiadiazole-4,7-diyl)[3,3′′′-bis (2-decyltetradecyl)[2,2′:5′,2′′:5′′,2′′ -quaterthiophene]-5,5′′′-diyl]]) produces organic solar cells of >11% efficiency with both fullerenes and non-fullerenes. We present a comprehensive morphology and spectroscopy study of this polymer and its blends, focusing on atomic force microscopy, x-ray diffraction, and transient absorption spectroscopy on microsecond timescales. Unusually, fullerene-induced ordering is observed, with the polymer/fullerene blend displaying a greater crystallinity compared to the pristine polymer. This was correlated with the appearance of bimodal polarons: fast-decaying polarons in the pristine amorphous polymer domains and trapped polarons localised in the fullerene-induced ordering (crystallline) domains. The lifetime of the trapped polaron was significantly enhanced upon thermal annealing, and the complex relationship observed between lifetime and film crystallinity suggest a contribution from trap states at the interfaces between ordered and disordered domains that lead to inhibited recombination. In contrast, blends incorporating the well-known analogue PffBT4T-2OD (with a shorter alkyl chain length) exhibit neither fullerene-induced ordering nor bimodal polarons. However, both PffBT4T-C9C13 and PffBT4T-2OD polymer blends show clear evidence of polymer triplet formation, which is the first time triplets have been identified in PffBT4T-based blends. In this study, we remark upon the complex relationship between morphology and the photophysics. This relationship will open the door to the synthesis of new molecules to control the blend morphology and thus optimise organic photovoltaic performance.
| Type: | Article |
|---|---|
| Title: | Bimodal polarons as a function of morphology in high efficiency polymer/acceptor blends for organic photovoltaics |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1088/2515-7639/ac0fbc |
| Publisher version: | https://doi.org/10.1088/2515-7639/ac0fbc |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution 4.0 International License. The images or other third party material in this article are included in the Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Chemistry |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10133059 |
Archive Staff Only
 |
View Item |
