Design and performance evaluation of additively manufactured composite lattice structures of commercially pure Ti (CP–Ti)

Xu, W; Yu, A; Lu, X; Tamaddon, M; Wang, M; Zhang, J; Zhang, J; ... Su, B; + view all (2021) Design and performance evaluation of additively manufactured composite lattice structures of commercially pure Ti (CP–Ti). Bioactive Materials , 6 (5) pp. 1215-1222. 10.1016/j.bioactmat.2020.10.005. Green open access

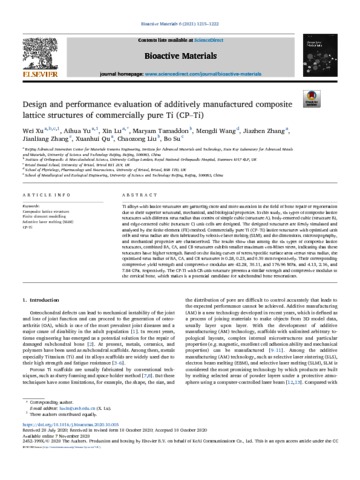

[thumbnail of Liu_1-s2.0-S2452199X20302577-main.pdf]
Preview
Text
Liu_1-s2.0-S2452199X20302577-main.pdf - Published Version

Download (8MB) | Preview

Abstract

Ti alloys with lattice structures are garnering more and more attention in the field of bone repair or regeneration due to their superior structural, mechanical, and biological properties. In this study, six types of composite lattice structures with different strut radius that consist of simple cubic (structure A), body-centered cubic (structure B), and edge-centered cubic (structure C) unit cells are designed. The designed structures are firstly simulated and analysed by the finite element (FE) method. Commercially pure Ti (CP–Ti) lattice structures with optimized unit cells and strut radius are then fabricated by selective laser melting (SLM), and the dimensions, microtopography, and mechanical properties are characterised. The results show that among the six types of composite lattice structures, combined BA, CA, and CB structures exhibit smaller maximum von-Mises stress, indicating that these structures have higher strength. Based on the fitting curves of stress/specific surface area versus strut radius, the optimized strut radius of BA, CA, and CB structures is 0.28, 0.23, and 0.30 mm respectively. Their corresponding compressive yield strength and compressive modulus are 42.28, 30.11, and 176.96 MPa, and 4.13, 2.16, and 7.84 GPa, respectively. The CP-Ti with CB unit structure presents a similar strength and compressive modulus to the cortical bone, which makes it a potential candidate for subchondral bone restorations.

Type: Article
Title: Design and performance evaluation of additively manufactured composite lattice structures of commercially pure Ti (CP–Ti)
Open access status: An open access version is available from UCL Discovery
DOI: 10.1016/j.bioactmat.2020.10.005
Publisher version: https://doi.org/10.1016/j.bioactmat.2020.10.005
Language: English
Additional information: This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).
Keywords: Composite lattice structure, Finite element modelling, Selective laser melting (SLM), CP-Ti
