Mudiyanselage, K;
Nadeem, MA;
Raboui, HA;
Idriss, H;
(2020)
Growth, characterization, and stability testing of epitaxial MgO (100) on GaAs (100).
Surface Science
, 699
, Article 121625. 10.1016/j.susc.2020.121625.
Preview |
Text

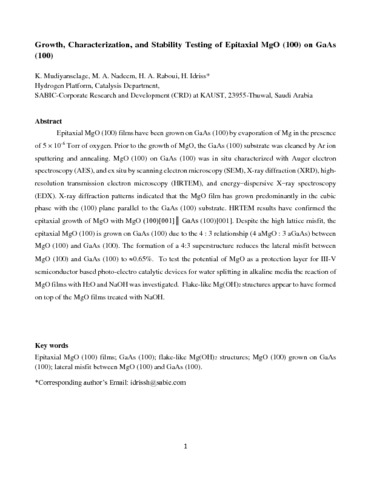

Idriss_Revised Mudiyanselage et al No Highlights.pdf - Accepted Version Download (1MB) | Preview |
Abstract
Epitaxial MgO (100) films have been grown on GaAs (100) by evaporation of Mg in the presence of 5 × 10−6 Torr of oxygen. Prior to the growth of MgO, the GaAs (100) substrate was cleaned by Ar ion sputtering and annealing. MgO (100) on GaAs (100) was in situ characterized with Auger electron spectroscopy (AES), and ex situ by scanning electron microscopy (SEM), X-ray diffraction (XRD), high-resolution transmission electron microscopy (HRTEM), and energy–dispersive X–ray spectroscopy (EDX). X-ray diffraction patterns indicated that the MgO film has grown predominantly in the cubic phase with the (100) plane parallel to the GaAs (100) substrate. HRTEM results have confirmed the epitaxial growth of MgO with MgO (100)[001]║ GaAs (100)[001]. Despite the high lattice misfit, the epitaxial MgO (100) is grown on GaAs (100) due to the 4: 3 relationship (4 aMgO: 3 aGaAs) between MgO (100) and GaAs (100). The formation of a 4:3 superstructure reduces the lateral misfit between MgO (100) and GaAs (100) to ≈0.65%. To test the potential of MgO as a protection layer for III-V semiconductor based photo-electro catalytic devices for water splitting in alkaline media the reaction of MgO films with H2O and NaOH was investigated. Flake-like Mg(OH)2 structures appear to have formed on top of the MgO films treated with NaOH.
| Type: | Article |
|---|---|
| Title: | Growth, characterization, and stability testing of epitaxial MgO (100) on GaAs (100) |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.susc.2020.121625 |
| Publisher version: | https://doi.org/10.1016/j.susc.2020.121625 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Epitaxial MgO (100) films, GaAs (100), Flake-like Mg(OH)2 structures, MgO (100) grown on GaAs (100), Lateral misfit between MgO (100) and GaAs (100) |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Chemistry |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10099692 |
