Lang, JE;
Madhavan, T;
Tetienne, J-P;
Broadway, DA;
Hall, LT;
Teraji, T;
Monteiro, TS;
... Hollenberg, LCL; + view all
(2019)
Nonvanishing effect of detuning errors in dynamical-decoupling-based quantum sensing experiments.
Physical Review A
, 99
, Article 012110. 10.1103/PhysRevA.99.012110.
Preview |
Text

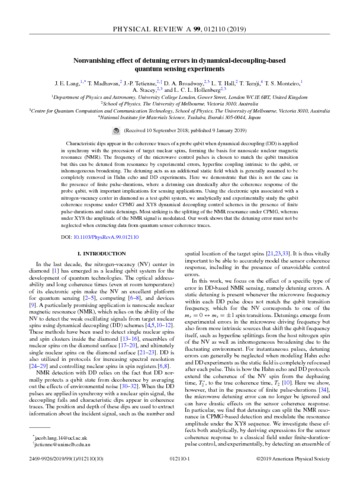

PhysRevA.99.012110.pdf - Published Version Download (1MB) | Preview |
Abstract
Characteristic dips appear in the coherence traces of a probe qubit when dynamical decoupling (DD) is applied in synchrony with the precession of target nuclear spins, forming the basis for nanoscale nuclear magnetic resonance (NMR). The frequency of the microwave control pulses is chosen to match the qubit transition but this can be detuned from resonance by experimental errors, hyperfine coupling intrinsic to the qubit, or inhomogeneous broadening. The detuning acts as an additional static field which is generally assumed to be completely removed in Hahn echo and DD experiments. Here we demonstrate that this is not the case in the presence of finite pulse-durations, where a detuning can drastically alter the coherence response of the probe qubit, with important implications for sensing applications. Using the electronic spin associated with a nitrogen-vacancy center in diamond as a test qubit system, we analytically and experimentally study the qubit coherence response under CPMG and XY8 dynamical decoupling control schemes in the presence of finite pulse-durations and static detunings. Most striking is the splitting of the NMR resonance under CPMG, whereas under XY8 the amplitude of the NMR signal is modulated. Our work shows that the detuning error must not be neglected when extracting data from quantum sensor coherence traces.
| Type: | Article |
|---|---|
| Title: | Nonvanishing effect of detuning errors in dynamical-decoupling-based quantum sensing experiments |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1103/PhysRevA.99.012110 |
| Publisher version: | http://doi.org/10.1103/PhysRevA.99.012110 |
| Language: | English |
| Additional information: | This version is the version of record. For information on re-use, please refer to the publisher’s terms and conditions. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10067243 |
