Primary ciliary dyskinesia with normal ultrastructure: three-dimensional tomography detects absence of DNAH11

Shoemark, A; Burgoyne, T; Kwan, R; Dixon, M; Patel, MP; Rogers, AV; Onoufriadis, A; ... Hogg, C; + view all (2018) Primary ciliary dyskinesia with normal ultrastructure: three-dimensional tomography detects absence of DNAH11. European Respiratory Journal , 51 (2) , Article 1701809. 10.1183/13993003.01809-2017. Green open access

[thumbnail of Burgoyne_UnmarkedDNAH11tomography.pdf]
Preview
Text
Burgoyne_UnmarkedDNAH11tomography.pdf - Accepted Version

Download (347kB) | Preview
[thumbnail of Burgoyne_Supplementary materials and methods DNAH11.pdf]
Preview
Text
Burgoyne_Supplementary materials and methods DNAH11.pdf - Accepted Version

Download (160kB) | Preview
[thumbnail of Burgoyne_Supplementary Case study.pdf]
Preview
Text
Burgoyne_Supplementary Case study.pdf - Accepted Version

Download (298kB) | Preview
[thumbnail of fig1.tif]
Preview
fig1.tif - Accepted Version

Download (8MB) | Preview
[thumbnail of Fig2.tif]
Preview
Fig2.tif - Accepted Version

Download (8MB) | Preview
[thumbnail of fig3.tif]
Preview
fig3.tif - Accepted Version

Download (8MB) | Preview
[thumbnail of Fig4.tif]
Preview
Fig4.tif - Accepted Version

Download (8MB) | Preview
[thumbnail of Fig5.tif]
Preview
Fig5.tif - Accepted Version

Download (8MB) | Preview

Abstract

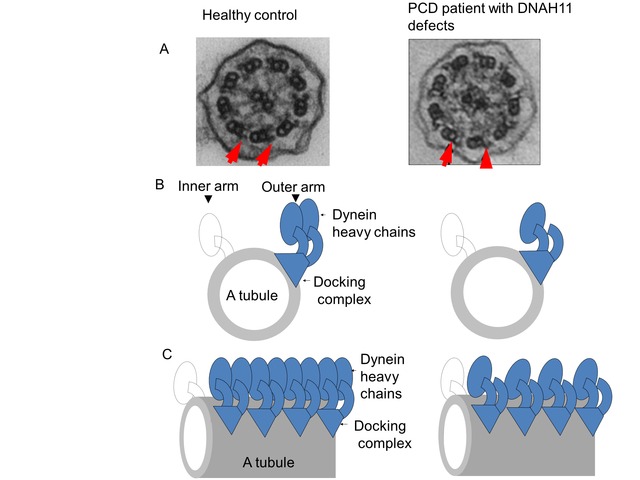

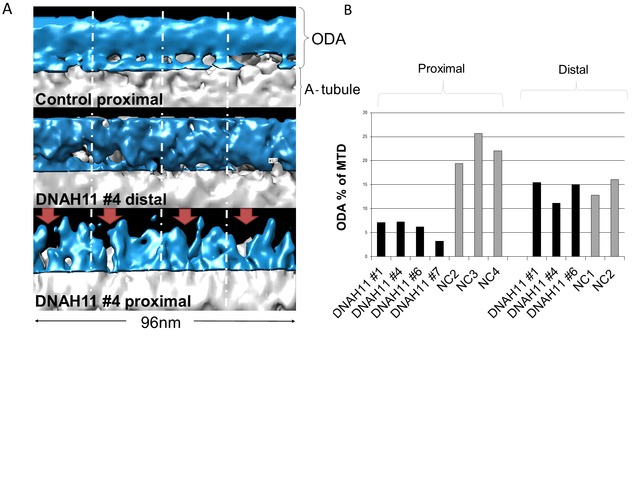

In primary ciliary dyskinesia (PCD), motile ciliary dysfunction arises from ciliary defects usually confirmed by transmission electron microscopy (TEM). In 30% of patients, such as those with DNAH11 mutations, apparently normal ultrastructure makes diagnosis difficult. Genetic analysis supports diagnosis, but may not identify definitive causal variants. Electron tomography, an extension of TEM, produces three-dimensional ultrastructural ciliary models with superior resolution to TEM. Our hypothesis is that tomography using existing patient samples will enable visualisation of DNAH11-associated ultrastructural defects. Dual axis tomograms from araldite-embedded nasal cilia were collected in 13 PCD patients with normal ultrastructure (DNAH11 n=7, HYDIN n=2, CCDC65 n=3 and DRC1 n=1) and six healthy controls, then analysed using IMOD and Chimera software. DNAH11 protein is localised to the proximal ciliary region. Within this region, electron tomography indicated a deficiency of >25% of proximal outer dynein arm volume in all patients with DNAH11 mutations (n=7) compared to other patients with PCD and normal ultrastructure (n=6) and healthy controls (n=6). DNAH11 mutations cause a shared abnormality in ciliary ultrastructure previously undetectable by TEM. Advantageously, electron tomography can be used on existing diagnostic samples and establishes a structural abnormality where ultrastructural studies were previously normal.

Type: Article
Title: Primary ciliary dyskinesia with normal ultrastructure: three-dimensional tomography detects absence of DNAH11
Open access status: An open access version is available from UCL Discovery
DOI: 10.1183/13993003.01809-2017
Publisher version: http://doi.org/10.1183/13993003.01809-2017
Language: English
Additional information: This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions.
UCL classification: UCL
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Brain Sciences
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Brain Sciences > Institute of Ophthalmology
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Brain Sciences > UCL Institute of Prion Diseases
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Brain Sciences > UCL Institute of Prion Diseases > MRC Prion Unit at UCL
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Population Health Sciences > UCL GOS Institute of Child Health
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Population Health Sciences > UCL GOS Institute of Child Health > Genetics and Genomic Medicine Dept
UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Population Health Sciences > UCL GOS Institute of Child Health > Population, Policy and Practice Dept
URI: https://discovery.ucl.ac.uk/id/eprint/10049601
