Robbiano, V;
Paternò, GM;
Cotella, GF;
Fiore, T;
Dianetti, M;
Scopelliti, M;
Brunetti, F;
... Cacialli, F; + view all
(2018)
Polystyrene nanoparticle-templated hollow titania nanosphere monolayers as ordered scaffolds.
Journal of Materials Chemistry C
, 6
(10)
pp. 2502-2508.
10.1039/c7tc04070a.
Preview |
Text

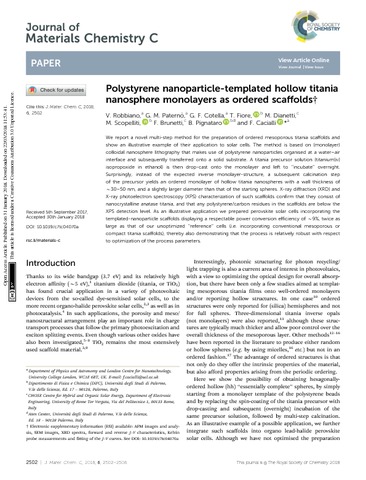

Robbiano_Polystyrene nanoparticle-templated.pdf - Published Version Download (2MB) | Preview |
Abstract
This journal is © The Royal Society of Chemistry. We report a novel multi-step method for the preparation of ordered mesoporous titania scaffolds and show an illustrative example of their application to solar cells. The method is based on (monolayer) colloidal nanosphere lithography that makes use of polystyrene nanoparticles organised at a water-air interface and subsequently transferred onto a solid substrate. A titania precursor solution (titanium(iv) isopropoxide in ethanol) is then drop-cast onto the monolayer and left to "incubate" overnight. Surprisingly, instead of the expected inverse monolayer-structure, a subsequent calcination step of the precursor yields an ordered monolayer of hollow titania nanospheres with a wall thickness of ∼30-50 nm, and a slightly larger diameter than that of the starting spheres. X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS) characterization of such scaffolds confirm that they consist of nanocrystalline anatase titania, and that any polystyrene/carbon residues in the scaffolds are below the XPS detection level. As an illustrative application we prepared perovskite solar cells incorporating the templated-nanoparticle scaffolds displaying a respectable power conversion efficiency of ∼9%, twice as large as that of our unoptimized "reference" cells (i.e. incorporating conventional mesoporous or compact titania scaffolds), thereby also demonstrating that the process is relatively robust with respect to optimization of the process parameters.
| Type: | Article |
|---|---|
| Title: | Polystyrene nanoparticle-templated hollow titania nanosphere monolayers as ordered scaffolds |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1039/c7tc04070a |
| Language: | English |
| Additional information: | This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. (https://creativecommons.org/licenses/by/3.0/) |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery.ucl.ac.uk/id/eprint/10045656 |
